Technical Info
- Dual sealing system allows valve to be operated in either direction making installation easier
- Handle clearly shows ball position
- Silicone-free lubricant on all seals
- Test standard API 598
- NACE compliance MR-01-75
- Handle stops on body to avoid stress at stem
- CF8M stainless steel body
- Plastic coated stainless steel lockable handle. Handle coating offers both thermal and electrical protection
- WARNING: do not exceed reasonable temperature and/or electrical load
- Blowout-proof stainless steel stem
- 1000 PSI non-shock cold working pressure
- 150 PSI WSP steam rating
- 2×10¯² torr vacuum rating
- *150 psig non-shock working steam pressure. Not suitable for throttling steam.
- -50°F to +400°F
- WARNING: freezing of the fluid in the installation may severely damage the valve
- PTFE seats
- NPT taper ANSI B.1.20.1 female by female threads
* ISO 7/1, BS 21 BSPT taper female by female threads
- GOST-R (Russia)
NOTE: approvals apply to specific configurations/sizes only.
| Part description | Quantity | Part Material |
|---|---|---|
|
Body
|
1
|
A351-CF8M
|
|
Insert
|
1
|
AISI316
|
|
Ball
|
1
|
AISI 316 or A351-CF8M
|
|
Stem
|
1
|
A276 Gr. 316
|
|
Seat
|
2
|
PTFE
|
|
Thrust washer
|
1
|
PTFE
|
|
Packing
|
1
|
PTFE
|
|
Washer
|
1
|
A240 SS304
|
|
Lock washer
|
1
|
A493 SS304
|
|
Stem nut
|
1
|
A194 Gr.8
|

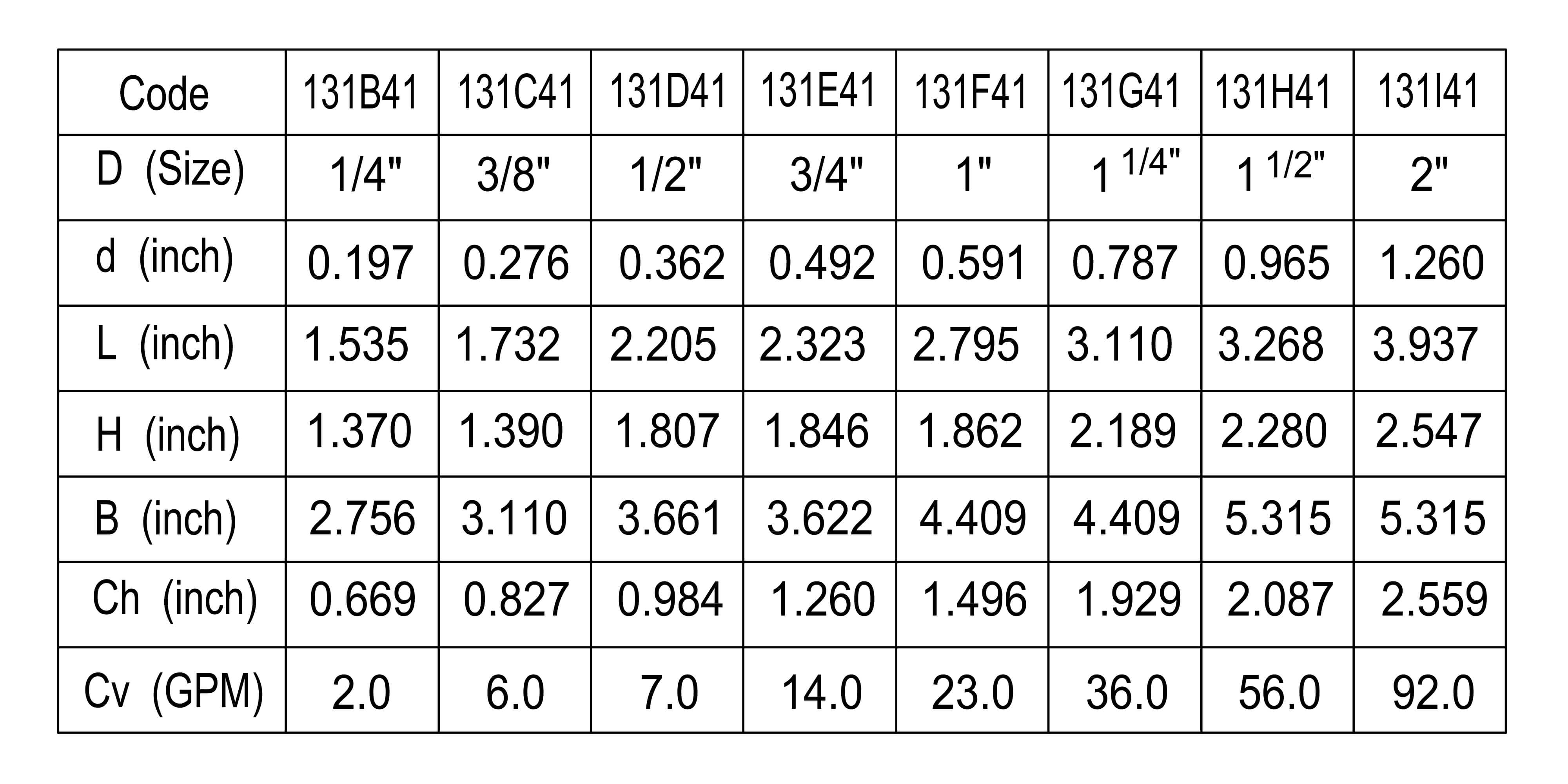

Water flow ratings
Pressure-temperature chart
Pressure drop chart
